Frequency Inverter SEVA-LS 015-G100-4

€246.81 net*

Prices plus VAT plus shipping costs

Delivery time auf Anfrage Workdays




Ask for Offer
  • 6041002300
  • For articles and packaging
Frequency inverter, 1.5kW, 380V- 480V, 1,3A, IP20, including operation panel, • V/f control,... more

Frequency inverter, 1.5kW, 380V- 480V, 1,3A, IP20, including operation panel,

• V/f control, sensorless vector control selectable
• PID controller for advanced process control
• High torque throughout the engine speed range
• 0.1-400Hz output frequency
• 1-15kHz clock frequency
• Input voltage range -15% to +10%
• Error register: last 5 errors
• Analog input 0 to +10Vdc / -10 to +10Vdc
• 150% torque at 0.5Hz
• Degree of protection IP20, UL type 1 (optional)
• Torque amplification (boost) manual/automatic
• Input signal PNP/NPN selectable
• Control and parameter setting for a second motor
• Integrated dynamic braking transistor as standard
• Automatic tuning: motor vector measurement and autotuning
• Integrated communication RS485 (LS Bus / Modbus RTU) with RJ45

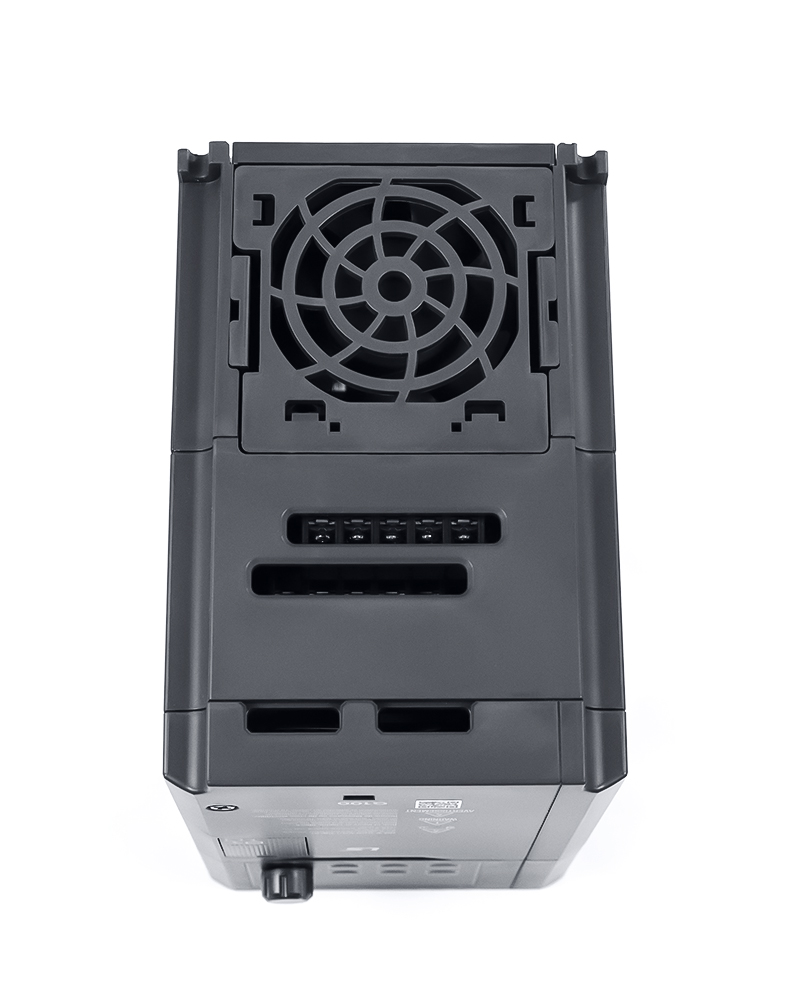

• Fan with on/off control, easily replaceable





Technical specifications:
