Frequency- Inverter-Motor ED230-0037-alpha-2

From €463.61 net*

Prices plus VAT plus shipping costs

Regelbereich:

Model:




  • 2Y25050104K001
  • For articles and packaging
  • Returns excluded!
Frequency Inverter, 1x 230V, EASYdrive alpha + Three- Phase- Motor, 0.37 kW Electric motor... more

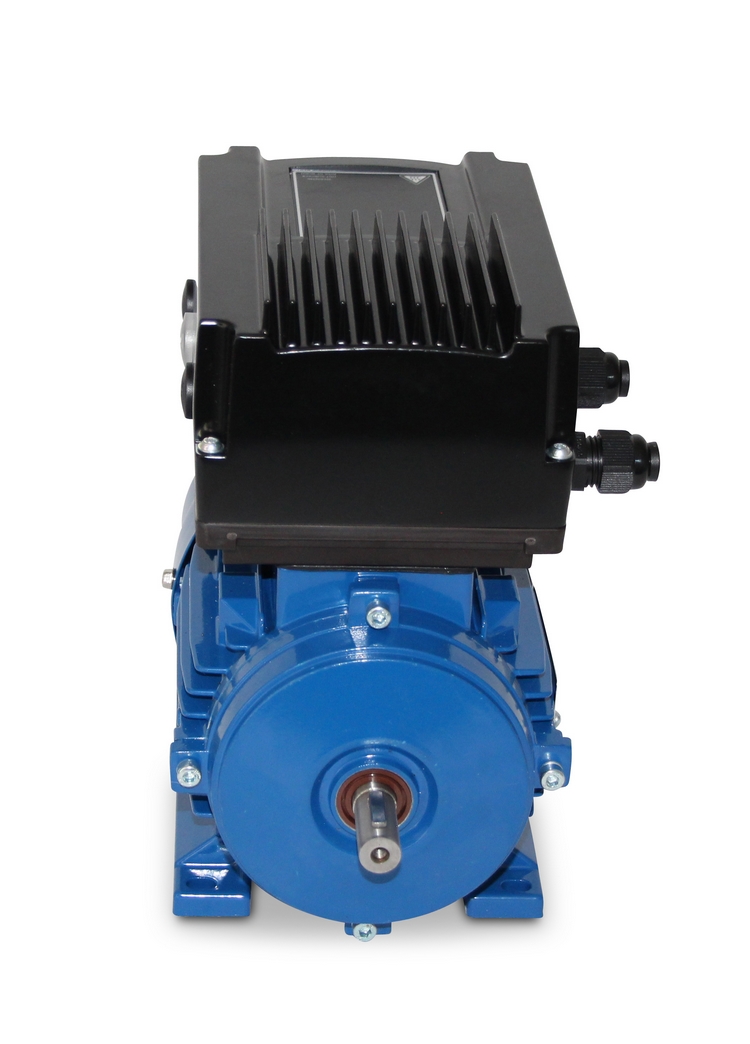

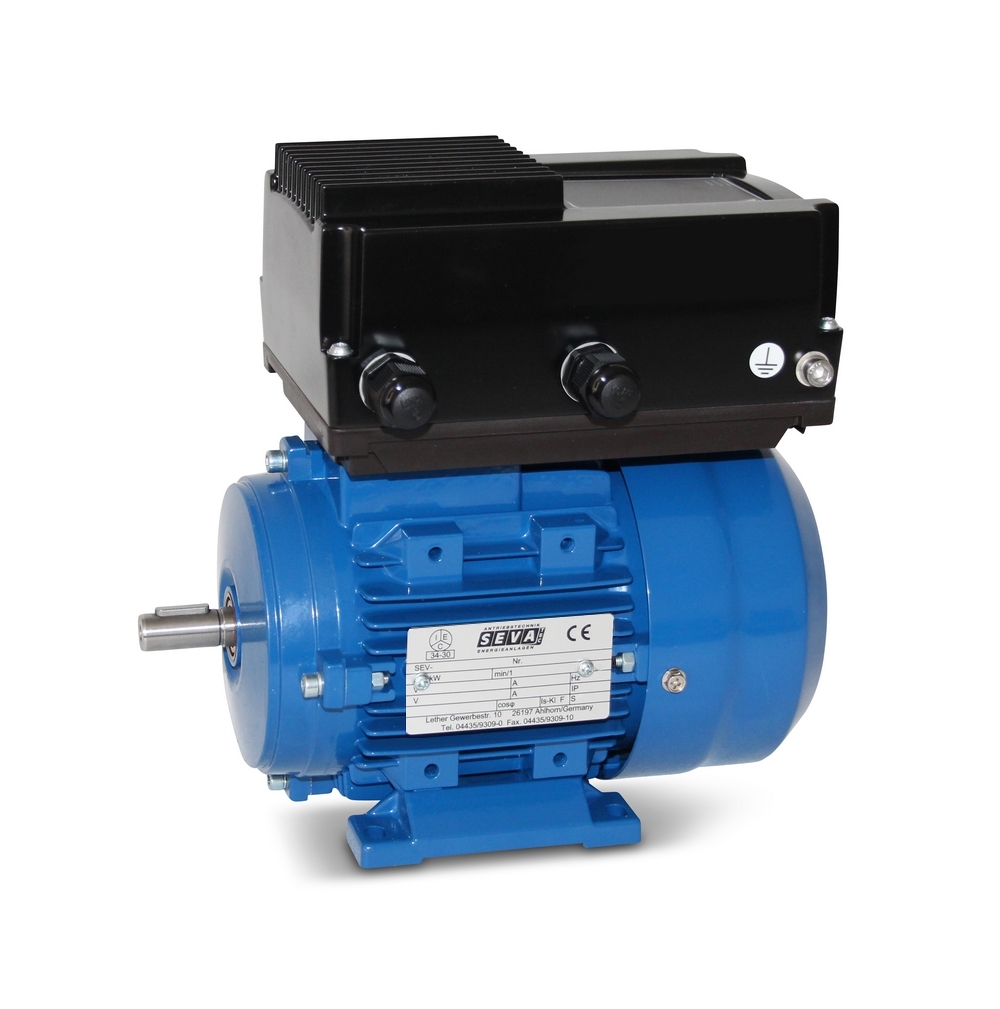

Frequency Inverter, 1x 230V, EASYdrive alpha + Three- Phase- Motor, 0.37 kW

Electric motor
Power= 0.37 kW, Speed= 2 pole, Shaft= 14 x 30 mm, Total weight= 7.9 Kg,
Type= B3, Input voltage= 1 x 230 V- 50 Hz, 1 x 265V- 60 Hz (± 5% gemäß VDE 0530),
Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,
Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminum,
Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= Axial fan (plastic),
Frequency Inverter
Power= 0.37 kW, Size= alpha, Input voltage= 1 x 230V +10% (single phase), Input frequency= 50/60 Hz,
Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 187mm x 126mm x 70mm,
Mains current (input)= 4.5 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for cooling
needed.

Product Information
The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules.
With Modbus (already included) and CANopen, the EASYdrive alpha provides compatibility with control environments
on. The customer can choose the relevant bus system for him and integrate the EASYdrive ideally in the control
environment of its application.The required optional control variant must be specified for orders.The EASYdrive lasts
without external filter measures the EMC class C2 (for 3-phase mains supply), or C1 (for 1-phase mains supply).

  ! Possible variant selection!

 Frequency-Inverter- Motor

Product selection

When selecting the frequency converter, make sure that there are 2 variants. First, this includes the device
in the standard version, secondly the device with a membrane keyboard. In both versions is a potentiometer
optional to order.

The illustrated "frequency converter in standard version" is fully usable and contains a built-in potentiometer,
but needs to control a corresponding control panel.
For this purpose, one of the following options must be ordered:

- External HMI device (MMI with cable and plug)
- Interface cable for PC programming
- Bluetooth adapter

The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,
such as Start-stop, left-right-run etc.
For parameterization, one of the following options must also be ordered:
- External HMI device (MMI with cable and plug)
- Interface cable for PC programming
- Bluetooth adapter

Programming
The three-phase motor with integrated EASYdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer these adjustmentsat an hourly rate of 86, - € / net.

Important instructions
This drive is a custom-made product. A resignation or revocation of the purchase is excluded!
All product photos are non-binding examples!
