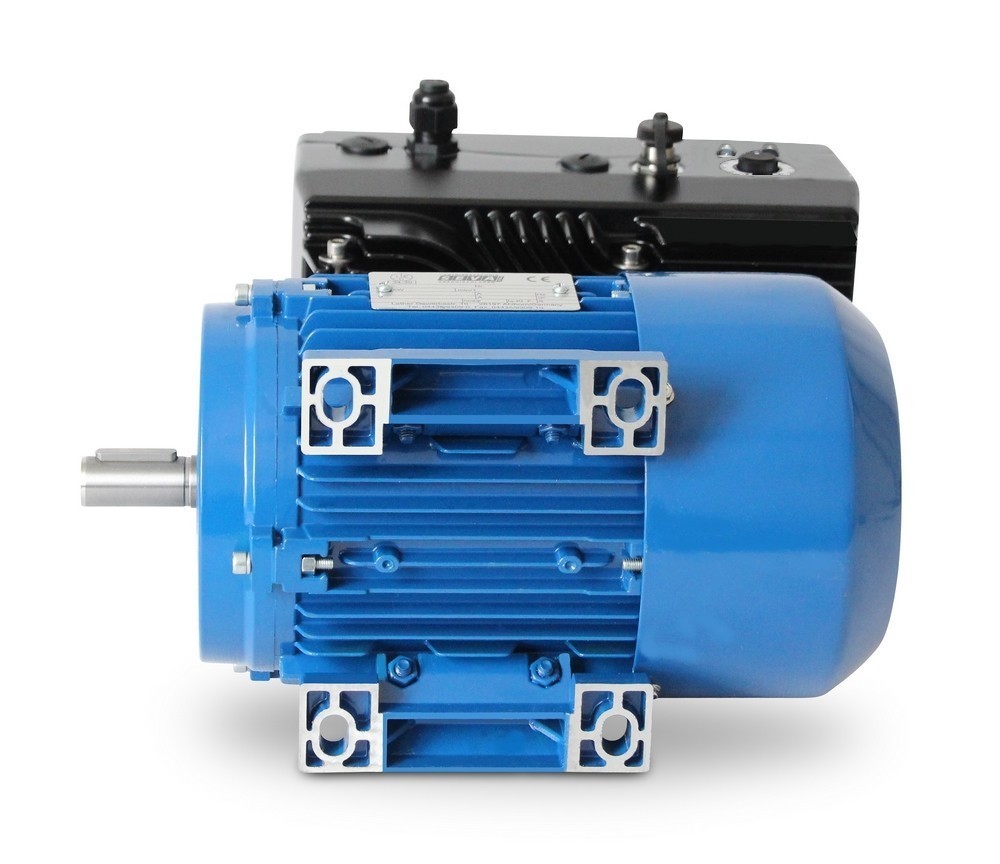

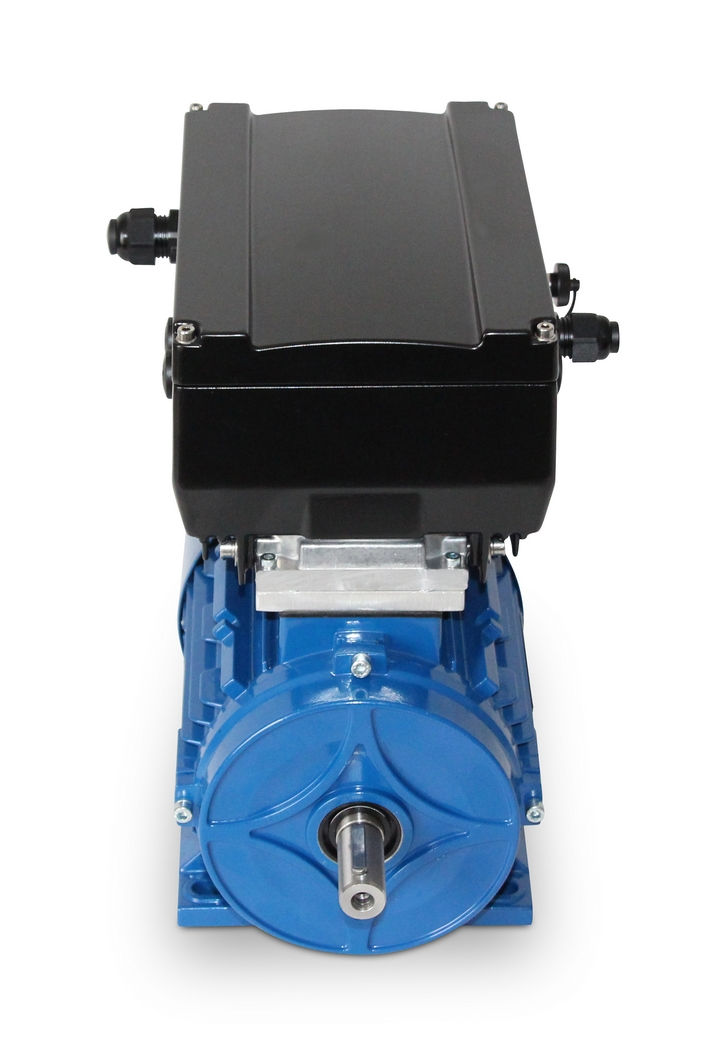

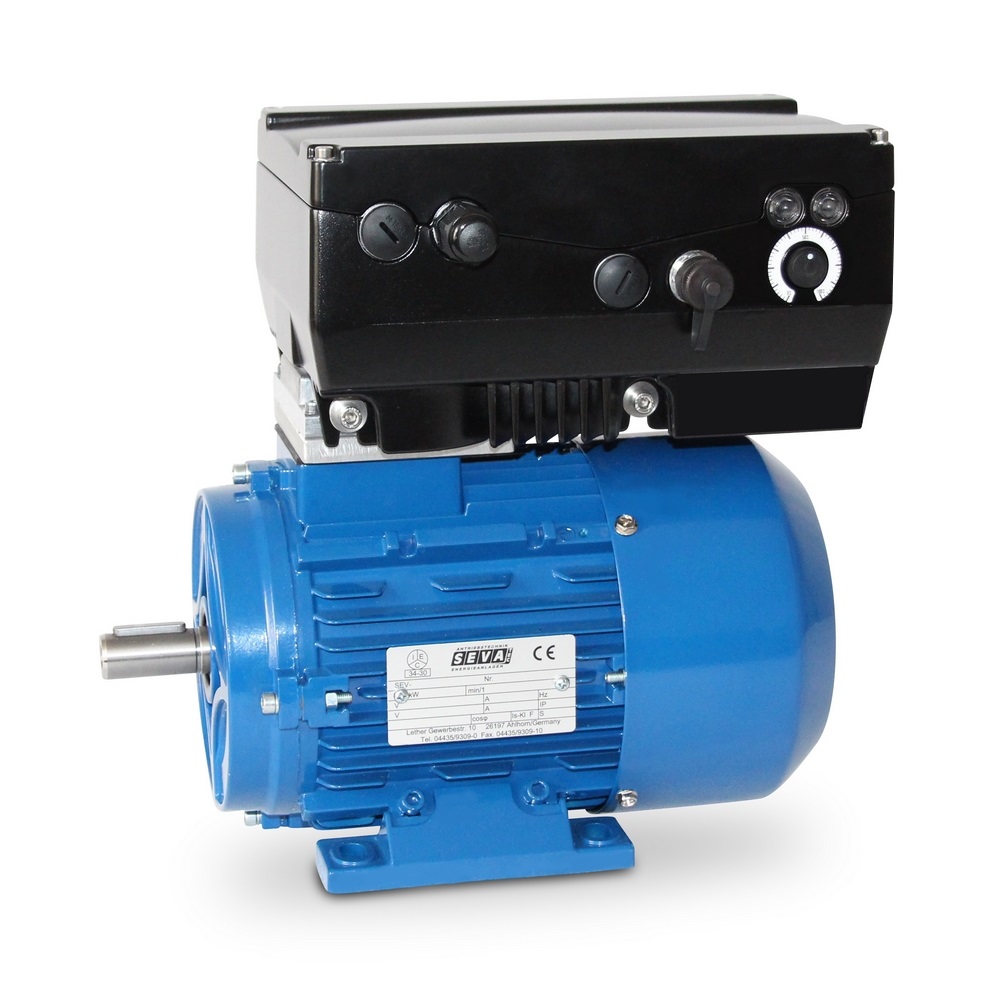

Frequency- Inverter-Motor ED400-1100-160M-4

Frequency Inverter, 3x 400V, EASYdrive with electric motor, 11 kW

Electric motor
Power= 11 kW, Speed= 4 pole, Shaft= 42 x 110 mm, Total weight= 143 Kg,
Type= B3, Input voltage= 3 x 400 V- 50 Hz, 3 x 460 V- 60 Hz (± 5% according to VDE 0530),
Frequency= 50/60 hertz, Painting= RAL 5010 (gentian blue), Degree of protection = IP55,
Temperature sensor= 3 x PTC thermistor, Terminal box position= top, Housing= Die-cast aluminum,
Insulation class= F (155°C), Ball bearing= SKF, C & U, o. Equivalent, Cooling= Axial fan (plastic),
Frequency Inverter
Power= 11 kW, Size= D, Input voltage= 3 x 400V + 10% (three-phase), Input frequency= 50/60 Hz,
Output frequency= 0-400 Hz, EMC filter= C2, Degree of protection= IP65, Dimensions= 414mm x 294mm x 232mm,
Mains current (input)= 23.2 A. Ideal control range= 5-60 Hz, below 30 Hz, a forced cooling fan is used for cooling
needed.

Product Information
The frequency converter optionally offers the possibility of becoming "bus-capable" with the aid of fieldbus modules.
With CANopen, EtherCAT, Modbus (already included), Profibus, Profinet and Sercos the EASYdrive offers
Compatibility with almost all common interfaces. The customer can choose the relevant bus system for him and
integrate the EASYdrive ideally in the control environment of its application.The required optional control variant
must be specified for orders.The EASYdrive lasts without external filter measures the EMC class C2
(for 3-phase mains supply), or C1 (for 1-phase mains supply).

  ! Possible variant selection!

Product selection

When selecting the frequency converter, make sure that there are 3 variants. First, this includes the device
in the standard version, secondly the device with a membrane keyboard and thirdly the device with an MMI
operating unit.
The illustrated "frequency converter in standard version" is fully usable and contains a built-in potentiometer,
but needs to control a corresponding control panel.
For this purpose, one of the following options must be ordered:

- External HMI device (MMI with cable and plug)
- Interface cable for PC programming
- Bluetooth adapter

The variant "Frequency inverter with membrane keypad" offers the possibility to directly control the FI,
such as Start-stop, left-right-run etc.
For parameterization, one of the following options must also be ordered:
- External HMI device (MMI with cable and plug)
- Interface cable for PC programming
- Bluetooth adapter

The variant "Frequency converter with MMI operating unit" does not require an optional operating unit
In addition, a display is included in the device cover. The mentioned options can be used if required.

Programming
The three-phase motor with integrated EASYdrive frequency converter is not programmed for security reasons! If further parameterization is necessary, we offer these adjustmentsat an hourly rate of 86, - € / net.

Important instructions
This drive is a custom-made product. A resignation or revocation of the purchase is excluded!
All product photos are non-binding examples!
